Fusion MS-AB206 Active Subwoofer With 2 Channel Amplifier

Turn up the bass

Introducing high-end audio for the marine cabin environment,
designed for exceptional sound in any vessel. The Fusion
MS-AB206 Active Subwoofer with 2 Channel Amplifier of the
Signature Series represents the highest quality purpose-built
marine audio equipment from FUSION. With unrivalled bass
reproduction, the MS-AB206 creates the perfect atmosphere for
entertaining or relaxing.

Engineered at FUSION’s design headquarters in Auckland, New
Zealand. Specifically tuned to produce the best acoustic result
when installed in a saloon or cabin environment. When paired with
the MS-BX3020 cabin speakers the sound is remarkable and like
nothing you’ve heard before.

What’s Included:

• Fusion MS-AB206 Active Subwoofer
• 1 x Power/GND/Remote-ON wiring loom
• 1 x 6M RCA cable
• 4 x stainless steel mounting screws
• 1 x control panel cover
• 2 x control panel cover screws
• manual
• warranty card

Fusion MS-AB206 Active Subwoofer Features:

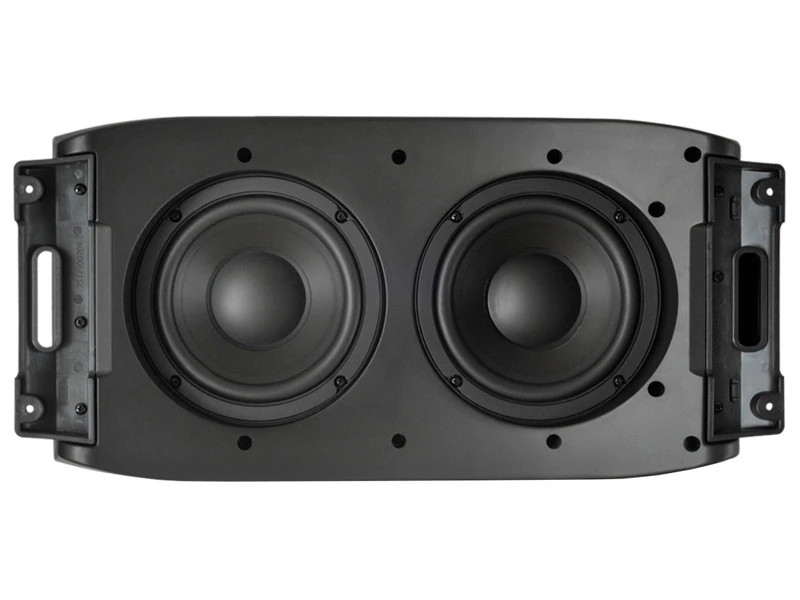

• Dual Voice Coil Down Firing Woofer – 6″ subwoofer, acoustically
  coupled to the matching passive radiator, produces exceptional bass
  reproduction
• 6″ Passive Radiator – is used to tune a small volume and driver
  for better low frequency performance, eliminating port turbulence
  and reducing motion compression
• Built-in Amplifier
• Installation Kit Included – everything needed to connect the
  Active Subwoofer is included in the box
• Discrete Control Panel Cover – hides all connection wires out
  of sight

Fusion MS-AB206 Active Subwoofer
Specifications:

• Model number: MS-AB206
• Peak power: 350W Total (210W + 140W Speaker Output)
• Speaker output rated power (parallel per channel to achieve
  this output):
• 26W RMS x 2 @ 4 Ohms per channel
• 43W RMS x 2 @ 2 Ohms per channel
• Speaker frequency response: 20Hz – 20kHz
• Subwoofer frequency response: 25Hz – 200Hz
• Low Pass Filter (variable): 25Hz – 200Hz
• Low Pass Filter (off): Fixed for use with MS-BX3020
• Enclosure type: passive radiator
• Woofer Size: 6″ Down Firing + 6′ Passive Radiator
• Fuse: 15 A
• Dimensions (LxWxH): 500 x 250 x 163mm

Note: Speakers sold separately.

Fusion Active Subwoofer with Built-In 4 Channel
Amplifier User Manual
